THE SCHOLAR WITH KITCHENETTES
$65,579.00
Description
DIMENSIONS
- Exterior – 40 ft (L) x 8 ft (W) x 9 ft 6 in (H)
- Bedroom 1 – 15 ft 7 ¾ in (L) x 7 ft (W) x 8 ft 10 in (H)
- Bedroom 2 – 15 ft 7 ¾ in (L) x 7 ft (W) x 8 ft 10 in (H)
- Bathroom 1 – 2 ft 10 in (L) x 7 ft (W) x 8 ft 10 in (H)
- Bathroom 2 – 2 ft 10 in (L) x 7 ft (W) x 8 ft 10 in (H)
- Firewall – 9 in (between Bathroom 1 and Bathroom 2)
FRAMING & WALLS
- 2 in x 4 in wood studs on 16 in centers
- LP Smart Siding Siding, Walls & Ceiling, Painted One Color
INSULATION
- Zone 3 Insulation
- Closed Cell Spray Foam
ELECTRICAL
- Qty 2 – 110v outlet quadplex (kitchen)
- Qty 1 – 110v GFCI outlet duplex (Bathroom)
- Qty 4 – 110v outlet duplexes
- Qty 2 – Vent fan/light (bathrooms)
- Qty 6 – Low-Profile LED interior lights
- Qty 2 – LED exterior lights
- Qty 1 – 240v main breaker box
- Qty 1- 125 amp 12 slot panel breaker box sub-panel
- Qty 2 – low profile ceiling fans (bedrooms)
ELECTRICAL & LIGHTS
- Qty 8 – 110v Duplex Outlets (4 Per Bedroom)
- Qty 2 – 110v GFCI Duplex (1 Per Restroom)
- Qty 2 – 110v GFCI Duplex (1 Per Kitchenette)
- Qty 1 – 110v GFCI Exterior Outlet
- Qty 4 – 13 in Brushed Nickel Low Profile Lights (2 Per Bedroom)
- Qty 2 – Outdoor Automatic Light (1 Above Each Door)
FLOORING
- Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
- Vapor Barrier installed underneath floor
WINDOWS/DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
- Qty 2 – 3 ft x 3 ft Vertical Slider Window (1 Per Bedroom)
- Qty 2 – 36 in x 80 Standard Personnel Door (1 Per Bedroom)
- Qty 2 – 30 in x 80 in Pocket Doors (1 Per Bathroom)

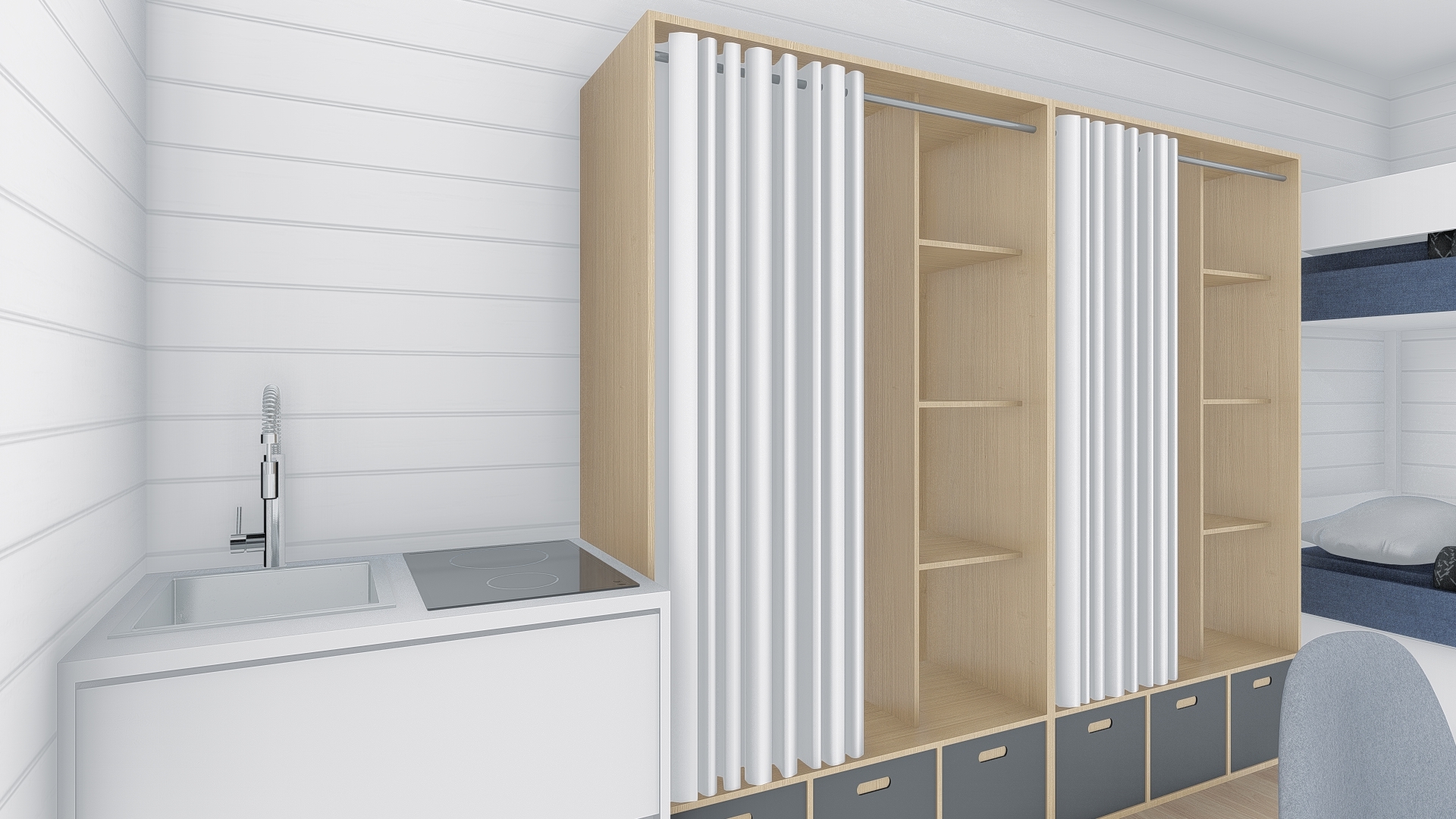

KITCHENETTE
- Qty 2 – 3 ft Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
- Qty 2 – Single Bay Sink with Faucet
- Qty 2 – Drop-in Two Burner Electric Radiant Stove Top
- Fridge Space – 20 in (L) x 18 ¾ in (W) x 33 ½ in (H)

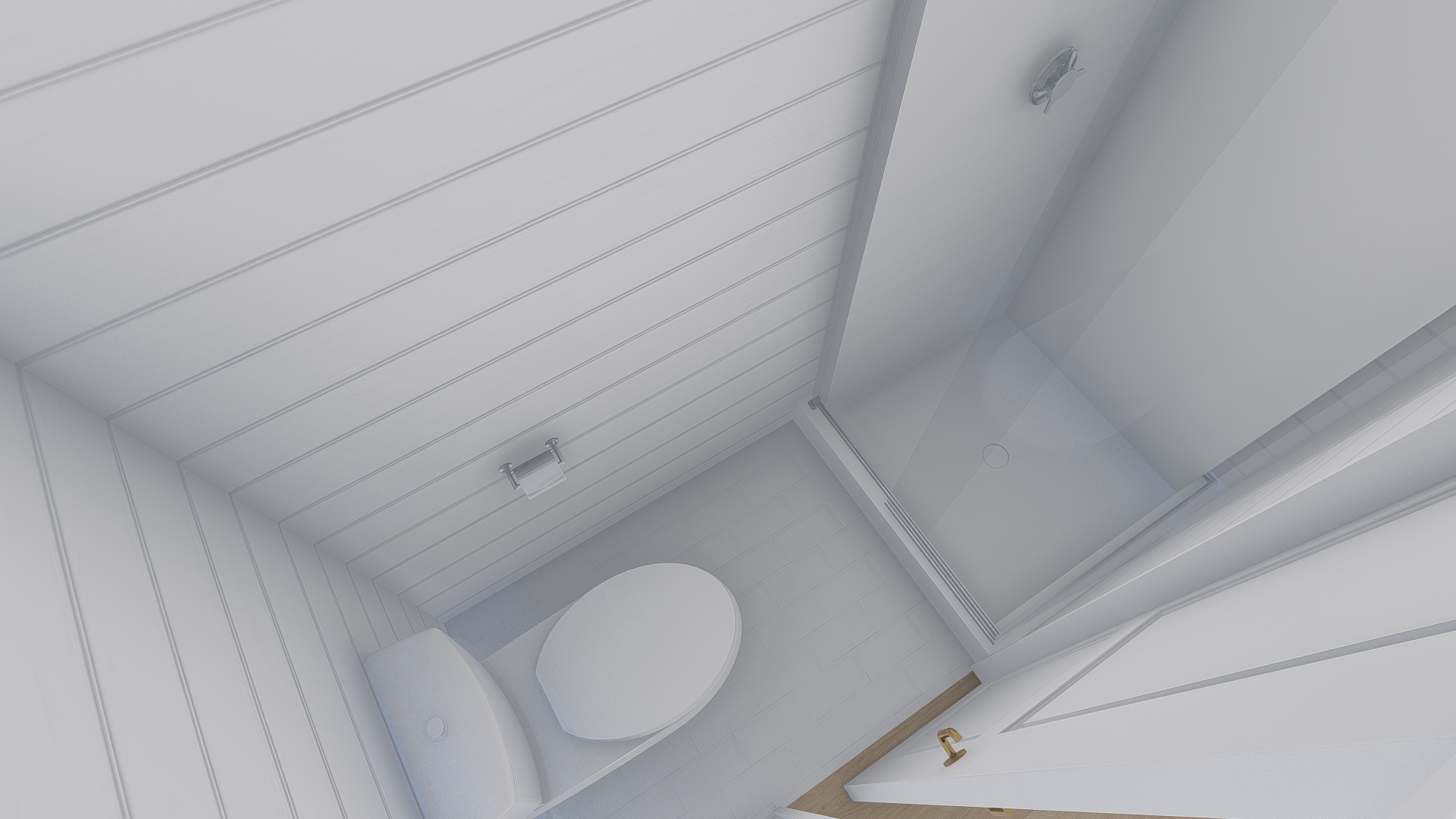

BATHROOMS
- Qty 2 – 3 ft x 3 ft, Wall Surround Shower Stall (1 Per Bathroom)
- Qty 2 – Standard Toilet 1.6 Gallons (1 Per Bathroom)
- Qty 2 – Vent Fan with Light (1 Per Bathroom)
- ¾ in (H) Step-up into Bathroom
MEP
- Panel – Qty 2 – 125 amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
- HVAC – Qty 2 – One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
- Water in – Qty 2 – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing with an Antifreeze hose bib
- Greywater – Qty 2 – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
- Sewage – Qty 2 – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
- Water heater – Qty 2 – 13 kW Self-Modulating Tankless Water heater 2.54 GPM installed under the vanity cabinets.
- Data Port – Qty 2
EXTERIOR
- Direct to Metal Paint
- Primer Applied
