“THE TAYLOR” MODEL READY TO SHIP
$110,030.00
Description

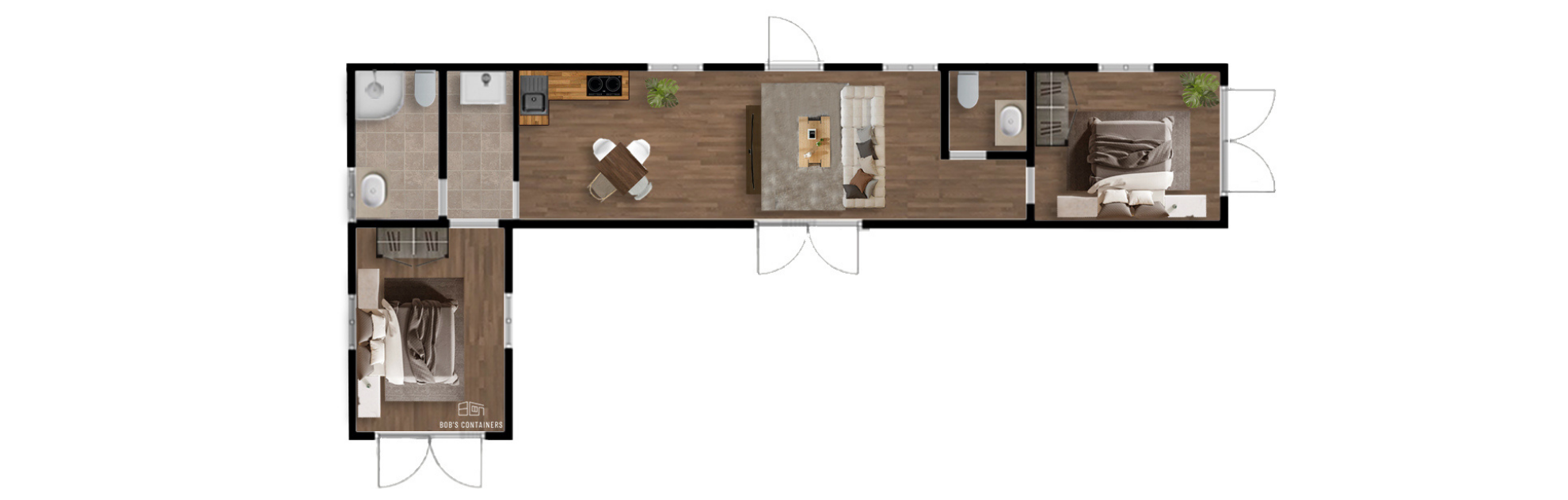

"THE TAYLOR" FLOORPLAN
CONTAINER HOME FEATURES & SPECS
DIMENSIONS
- Exterior – 40 ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container & 20ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container
- ¾ Bath – 8 ft (L) x 4.5 ft (W) x 9.5 ft (H)
- ½ Bath – 4 ft (L) x 4 ft (W) x 9.5 ft (H)
- Bedroom one – 11 ft (L) x 7 ft (W) x 9.5 ft (H)
- Bedroom two – 10 ft (L) x 7 ft (W) x 9.5 ft (H)
- Living – 13.5 ft (L) x 7 ft (W) x 9. ft (H)
- Kitchen – 13.5 ft (L) x 7 ft (W) x 9.5 ft (H)
FRAMING & WALLS
- 2 in x 4 in wood studs on 16 in centers
- Drywall, Orange Peel Texture
-
INSULATION
- Closed cell spray foam
- Ceiling – 3 in R21
- Walls – 2 in R13
- Floor – 1 in R7
- These can be modified according to your climate or needs
ELECTRICAL & LIGHTS
- Qty 1 – 200amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
- Qty 4 – 110v Duplex Outlets (Living Area)
- Qty 4 – 110v Duplex Outlets (Bedroom One)
- Qty 4 – 110v Duplex Outlets (Bedroom Two)
- Qty 2 – 110v GFCI Duplex Outlets (Kitchen Counter)
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
- Qty 2 – 110v GFCI Duplex Outlet (One Per Bathroom)
- Qty 1 – 110v Exterior Outlet
- Qty 6 – 13 in Brushed Nickel Low Profile Lights
- Qty 2 – 44 in LED Brushed Nickel Ceiling Fan with Interior Light (One per Bedroom)
- Qty 1 – Gray Outdoor Flood Exterior Light
FLOORING
- Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
- Vapor Barrier installed underneath floor
WINDOWS & DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
- Qty 2 – 2 ft x 2 ft Horizontal Slider Window (One Per Bathroom)
- Qty 1 – 36 in Personal Door (Living Room)
- Qty 1 – 6 ft x 6 ft x 80 in 15-Lite Grille French Patio Door (Living Room)
- Qty 2 – 6 ft x 6 ft x 80 in 15-Lite Grille French Patio Door (Installed Behind the Cargo Doors)
- Qty 5 – 24 in x 80 in Pocket Doors (1 Bedroom, 1 Bathroom)

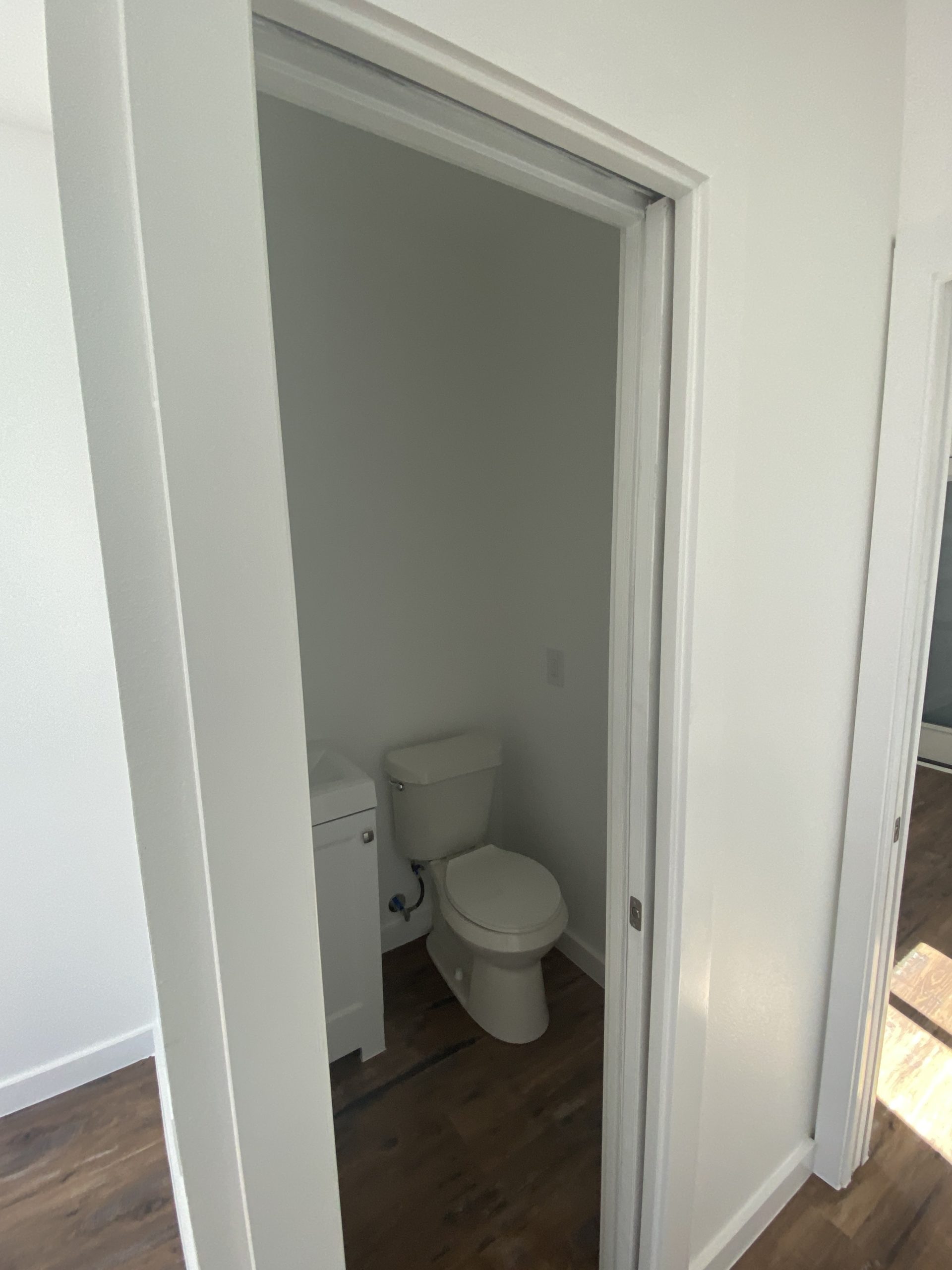

1/2 BATHROOM
- Qty 1 – 1.5 ft Vanity Sink with Faucet
- Qty 1 – American Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light
3/4 BATHROOM
- Qty 1 – 3 ft x 3 ft, Wall Surround Shower Stall
- Qty 1 – 1.5 ft Vanity Sink with Faucet
- Qty 1 – American Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light

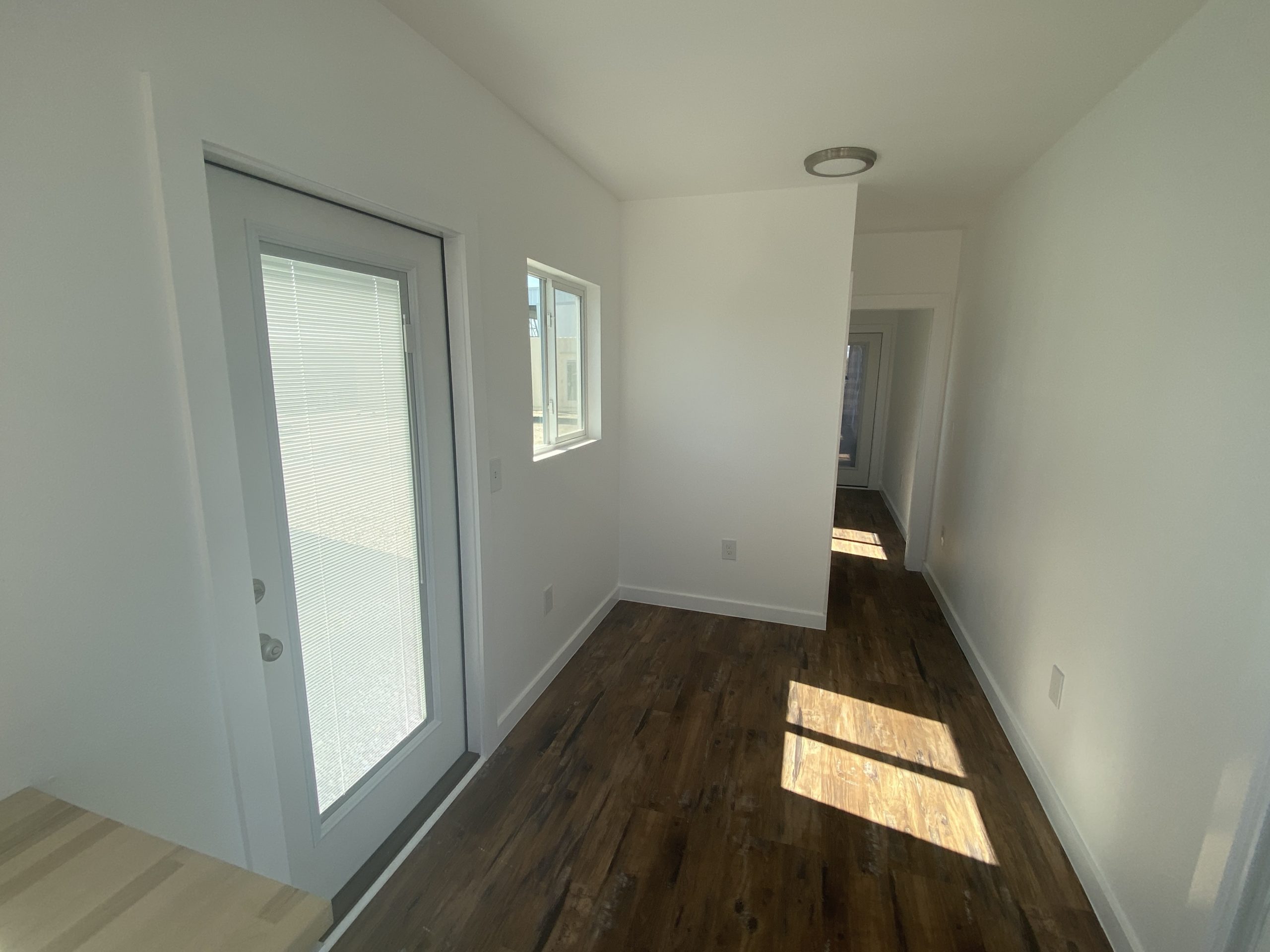

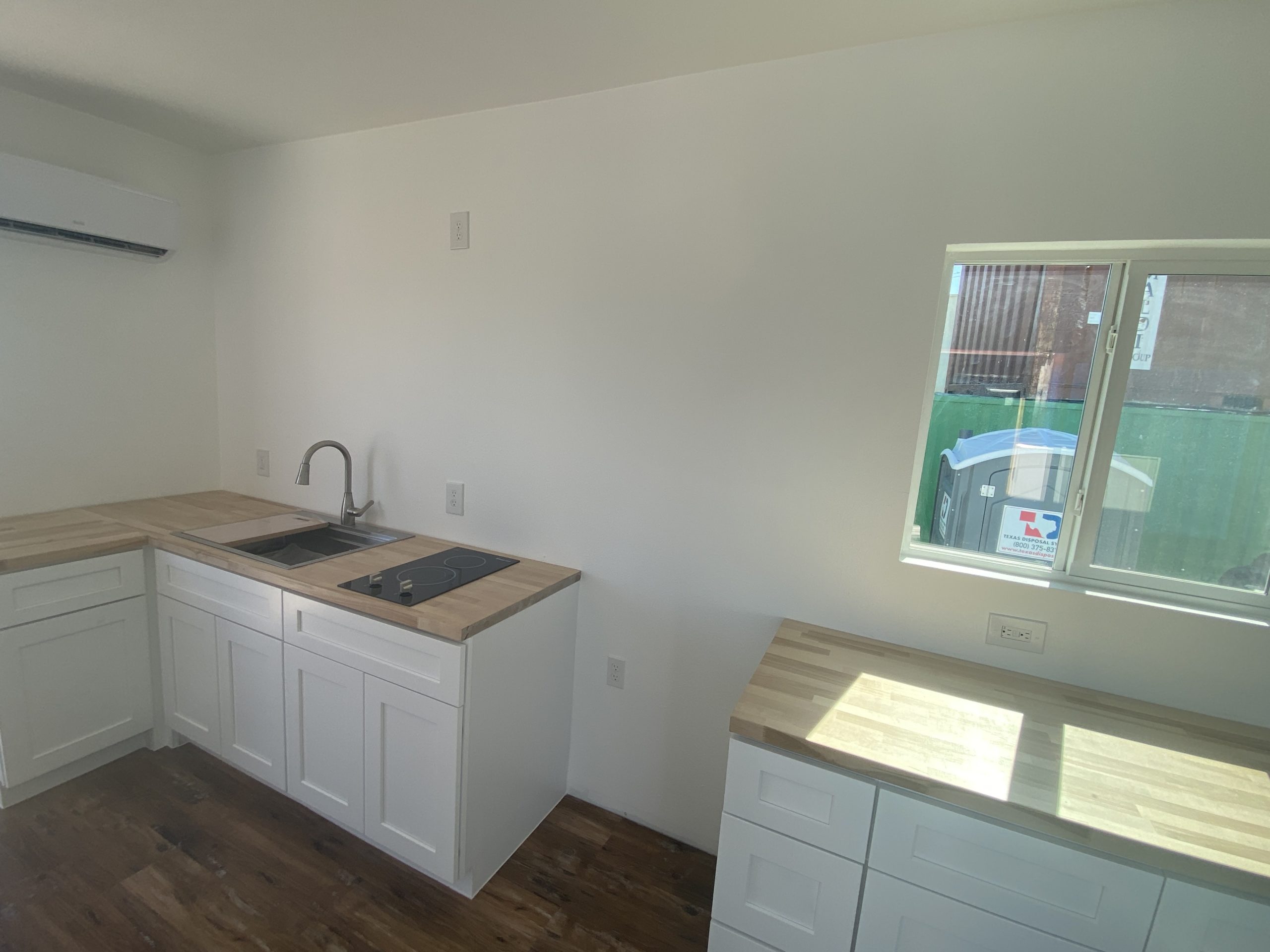

LIVING AREA WITH KITCHENETTE
- Qty 1 – 9 ft L-Shape Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
- Qty 1 – 18 in (L) x 18 in (W) x 18 in (H) TORVA Single Bay Sink with McKenna Single-Handle Pull-Down Sprayer Kitchen Faucet, Stainless Steel
- Qty 1 – Drop-in Two Burner Electric Radiant Stove Top
MEP
- HVAC – Qty 2 – AUX One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
- Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing (one per container)
- Greywater – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup (one per container)
- Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.(one per container)
- Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated. (one per container)

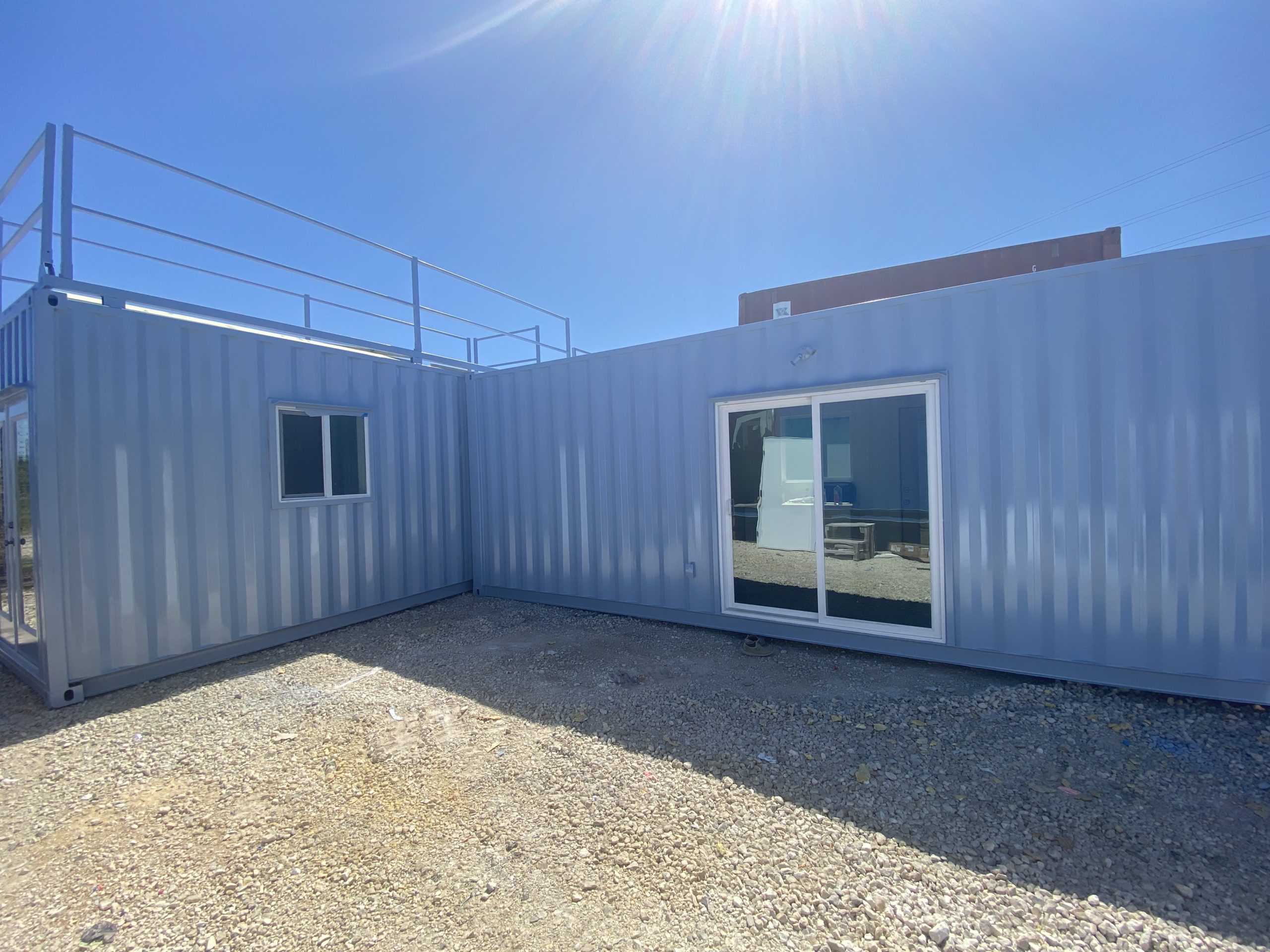

EXTERIOR
- Oil Based Enamel Paint
- Primer Applied

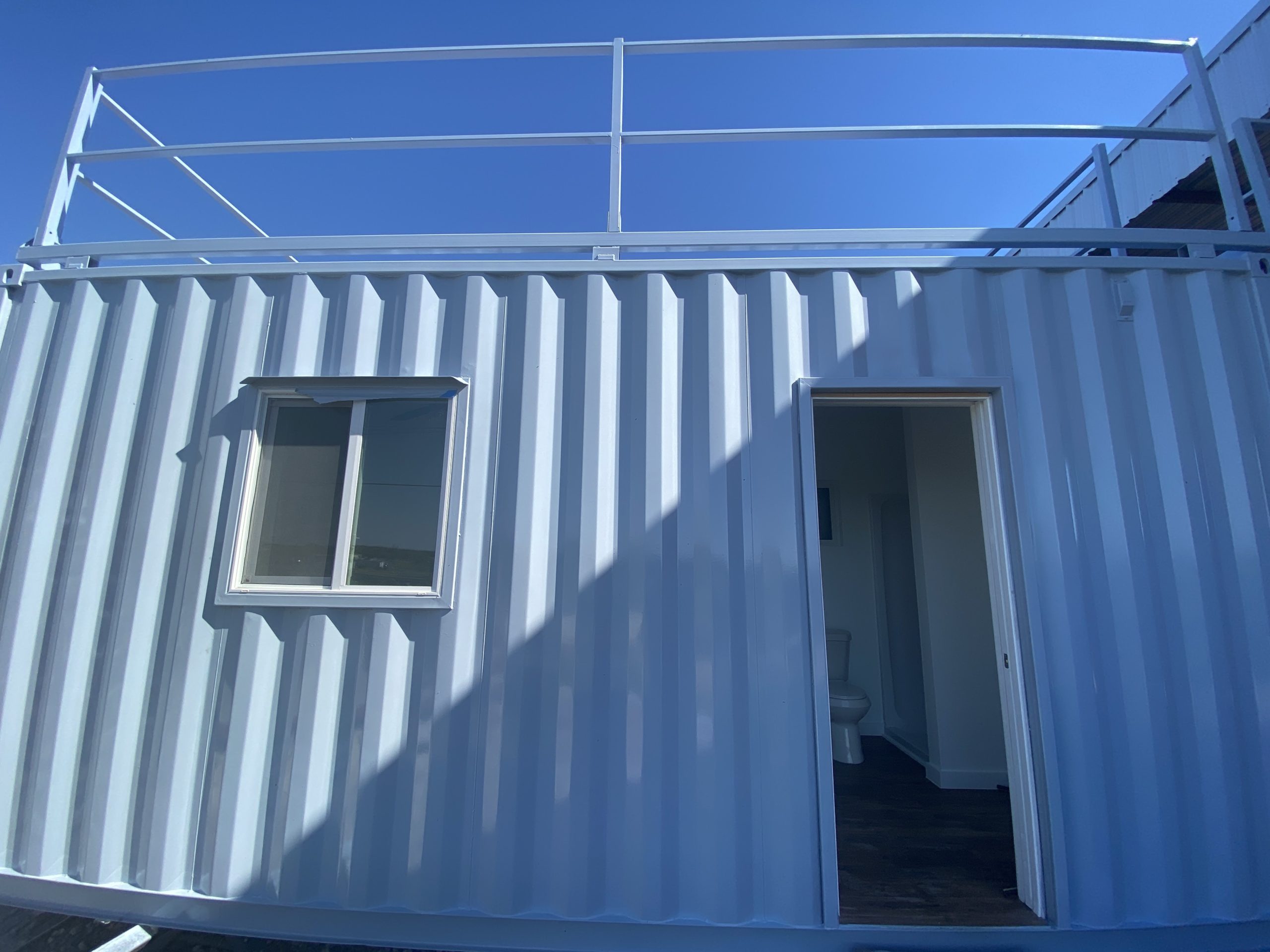

20 FT DECK
- Rooftop deck, with a static staircase and fold-up railings
CONNECTIONS FOR WASHER/DRYER INCLUDING
- 220V outlet
- Washer outlet box
- 2″ PVC connection to the main water outlet
