“THE ELM” MODEL
$108,010.00
Description

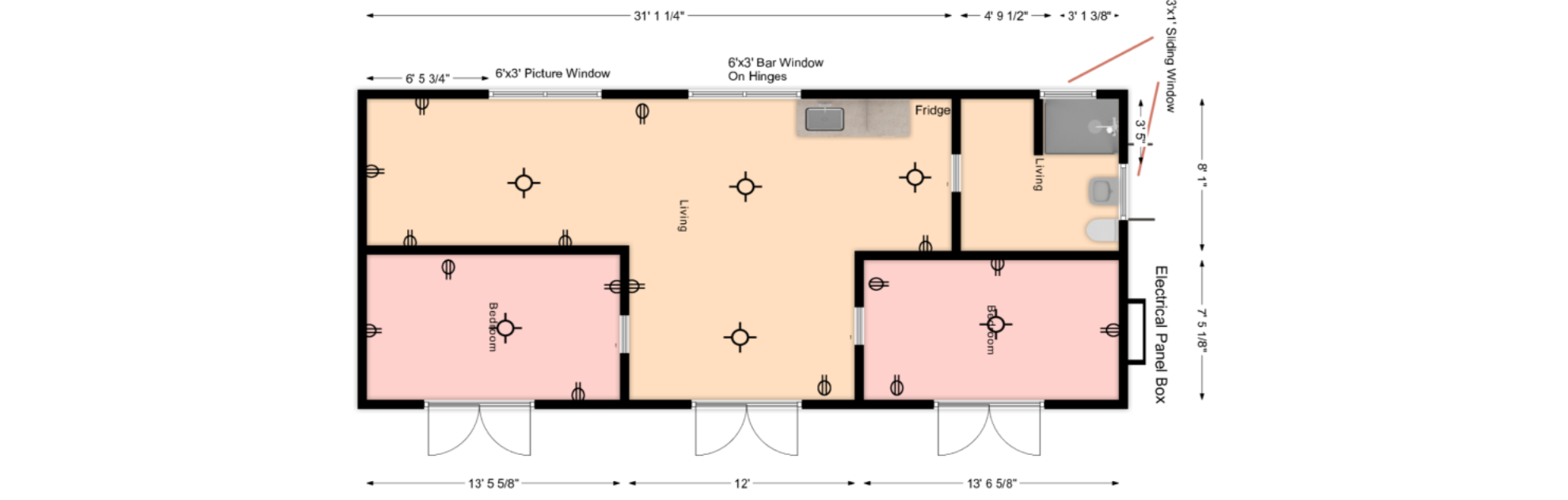

"THE ELM" FLOORPLAN
DOUBLE WIDE CONTAINER HOME FEATURES & SPECS
UNITS A & B
FRAMING & WALLS
- 2 in x 4 in wood studs on 16 in centers
- Drywall, Orange Peel Texture
INSULATION
- Closed-cell spray foam
- Zone 3
- These can be modified according to your climate or needs
FLOORING
- Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
- Vapor Barrier installed underneath floor
EXTERIOR
- Oil Based Enamel Paint
- Custom color, choose your color at https://www.behr.com/consumer/
- Primer Applied
MEP
- Qty 3 – HVAC – AUX One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
- Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing
- Greywater – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
- Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
- Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated
CUT OUT
- 12 ft x 9 ft cutout on both 40 ft containers
UNIT A (LIVING / KITCHEN / BATHROOM)
ELECTRICAL
- Qty 1 – 125 amp 12 Slot Panel Breaker Box (interior mount with exterior cutoff)
- Qty 8 – 110v Duplex Outlets (Living Area)
- Qty 2 – 110v Quadplex Outlet (Kitchen Counter)
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for electric stovetop
- Qty 1 – 110v GFCI Duplex (Restroom)
- Qty 3 – Low Profile LED Light
WINDOWS/DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
- Qty 2 – 3 ft x 1 ft left hand horizontal sliding vinyl window, white
- Qty 2 – 6 ft x 3 ft’ window, white
- Qty 1 – 24 in x 80 in Pocket Doors

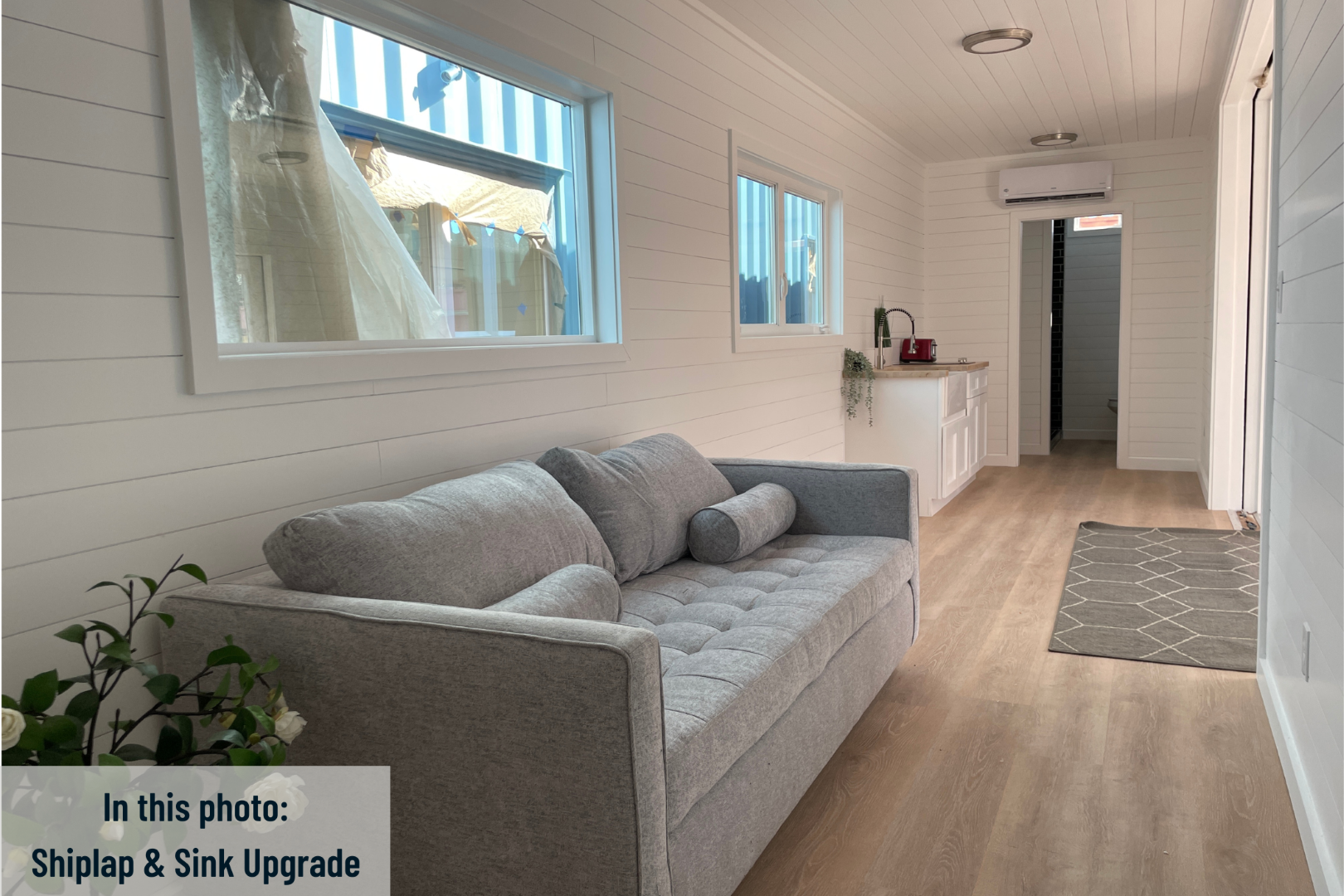

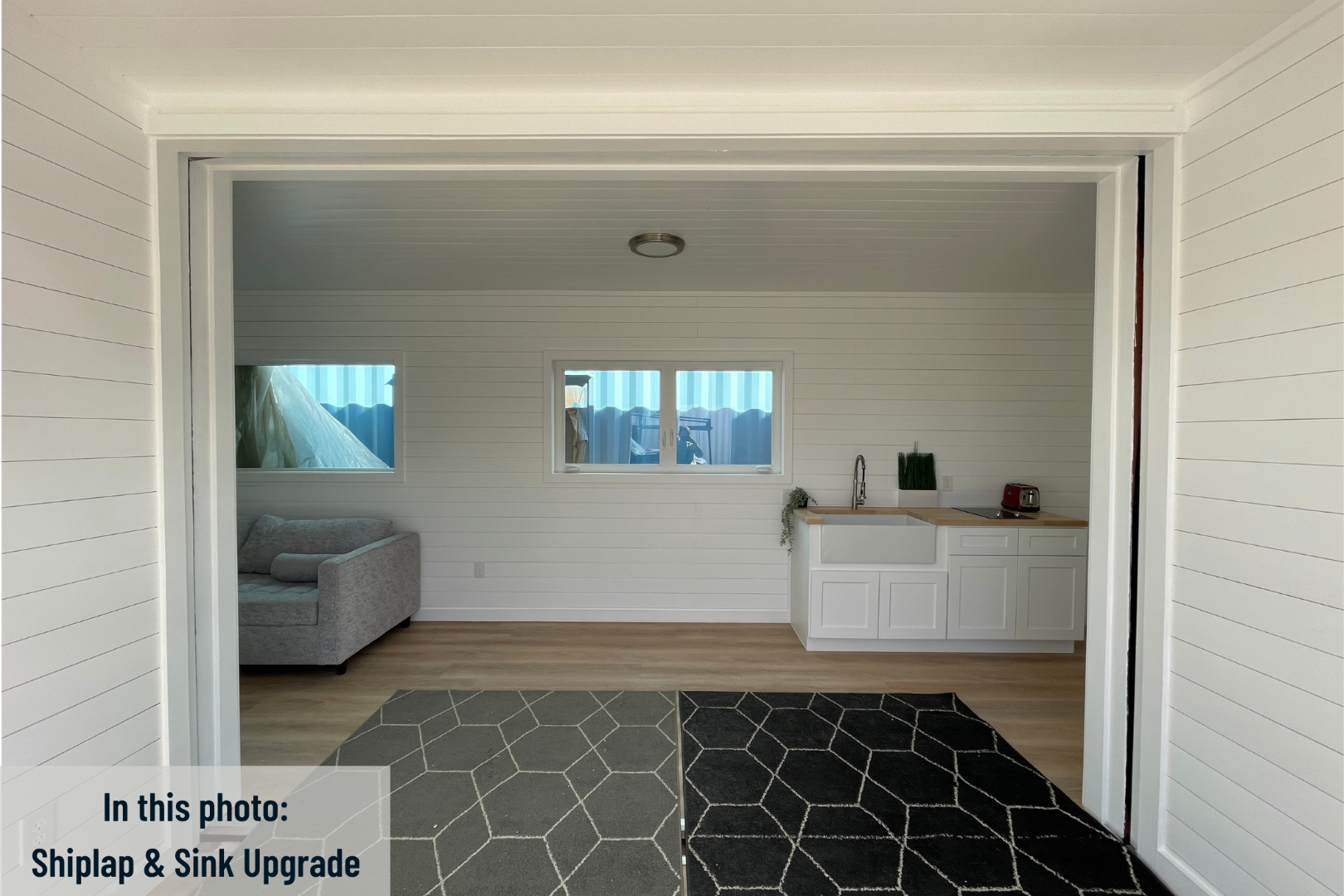

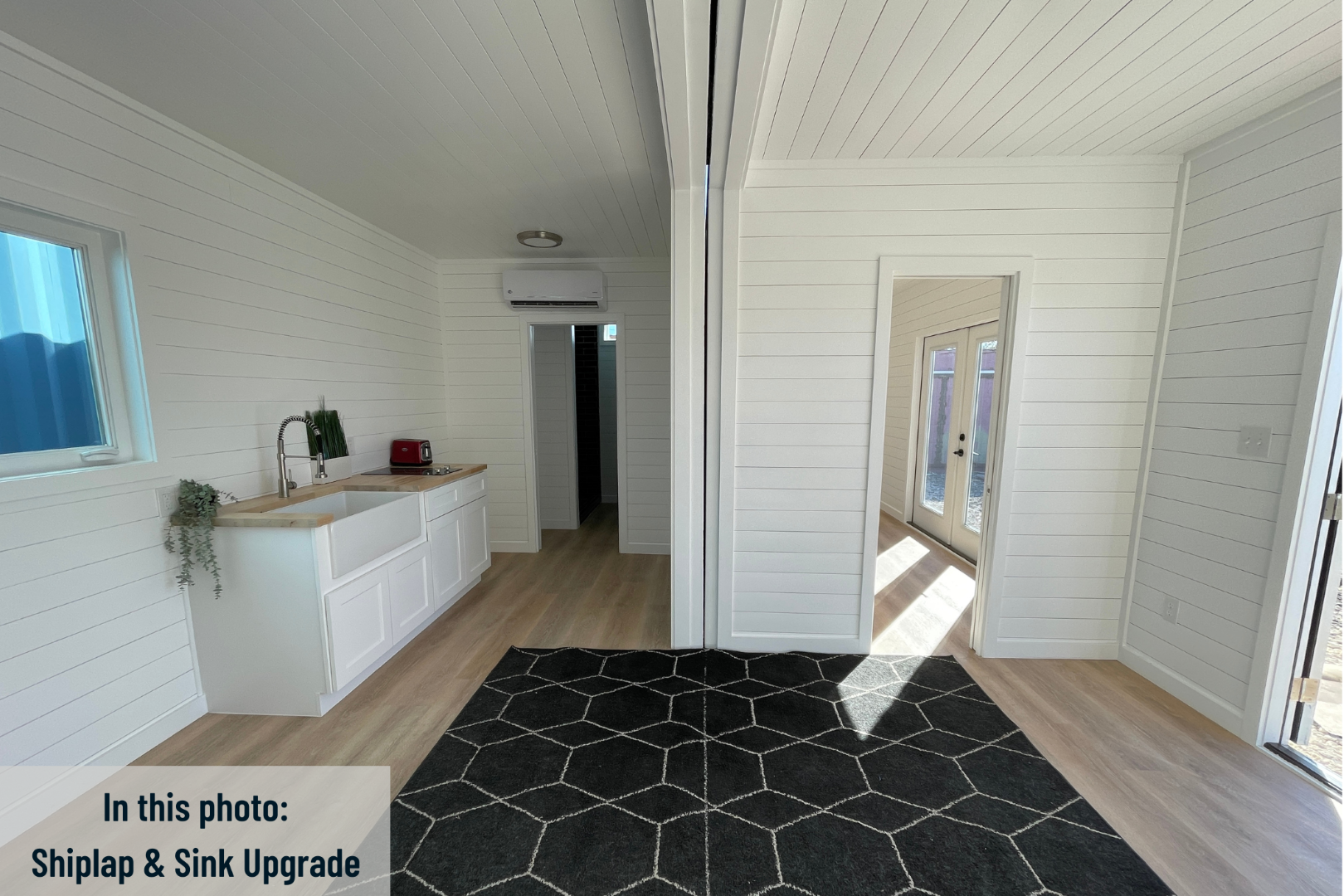

LIVING AREA WITH KITCHENETTE
- Qty 1 – 6 ft Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
- Qty 1 – 18 in (L) x 18 in (W) x 18 in (H) TORVA Single Bay Sink with McKenna Single-Handle Pull-Down Sprayer Kitchen Faucet, Stainless Steel
- Qty 1 – Drop-in Two Burner Electric Radiant Stove Top
LIVING AREA WITH KITCHENETTE
- Qty 1 – 10 ft L-Shape Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
- Qty 1 – 33 in x 22 in All-in-One Kitchen Sink with Pull Down Faucet
- Qty 1 – Drop-in Four Burner Electric Radiant Stove Top
- Qry 1 – 6 ft Overhead Kitchen Cabinets
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
3/4 BATHROOM
- Qty 1 – 3 ft x 3 ft, Wall Surround Shower Stall
- Qty 1 – 1.5 ft Vanity Sink with Faucet
- Qty 1 – Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light

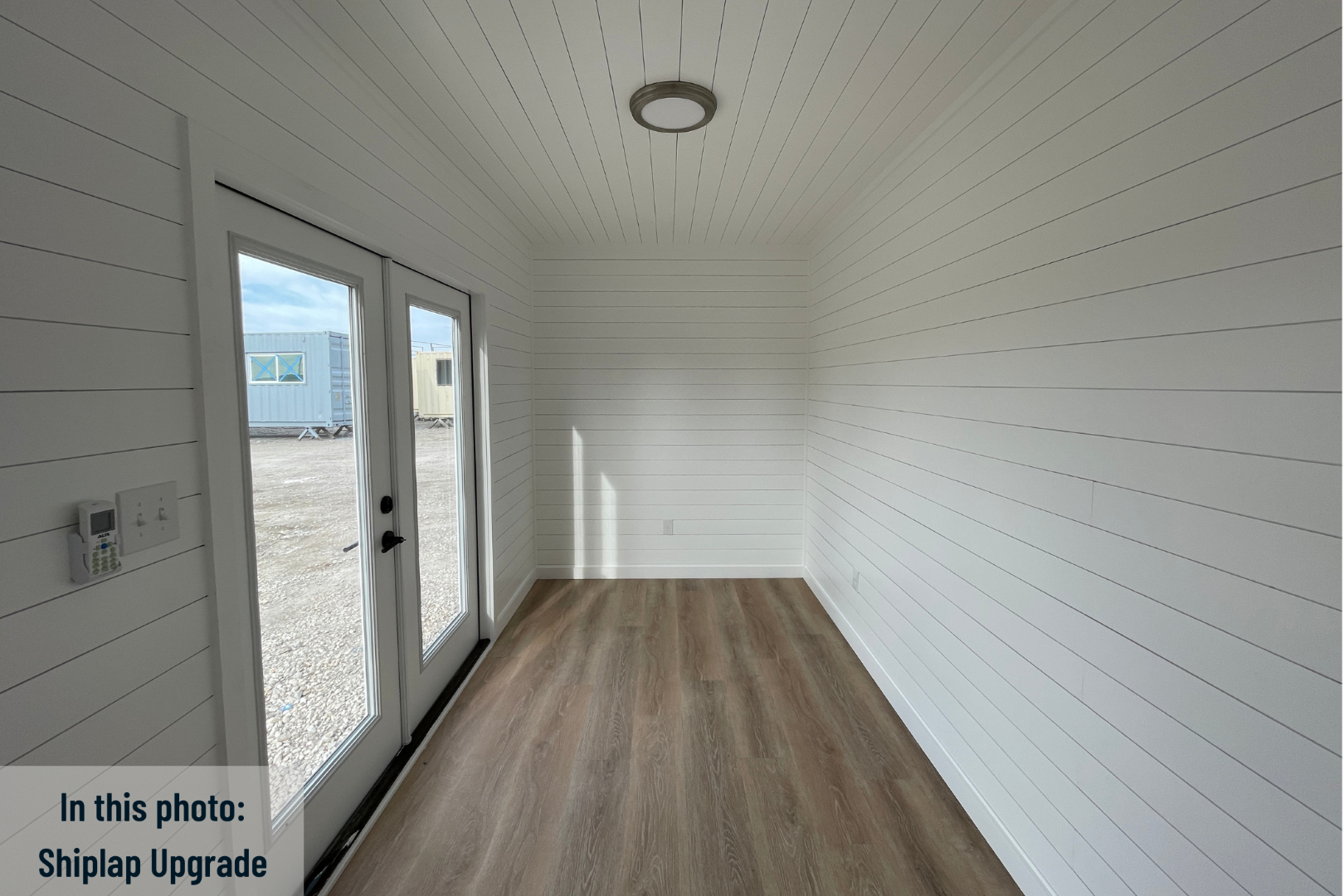

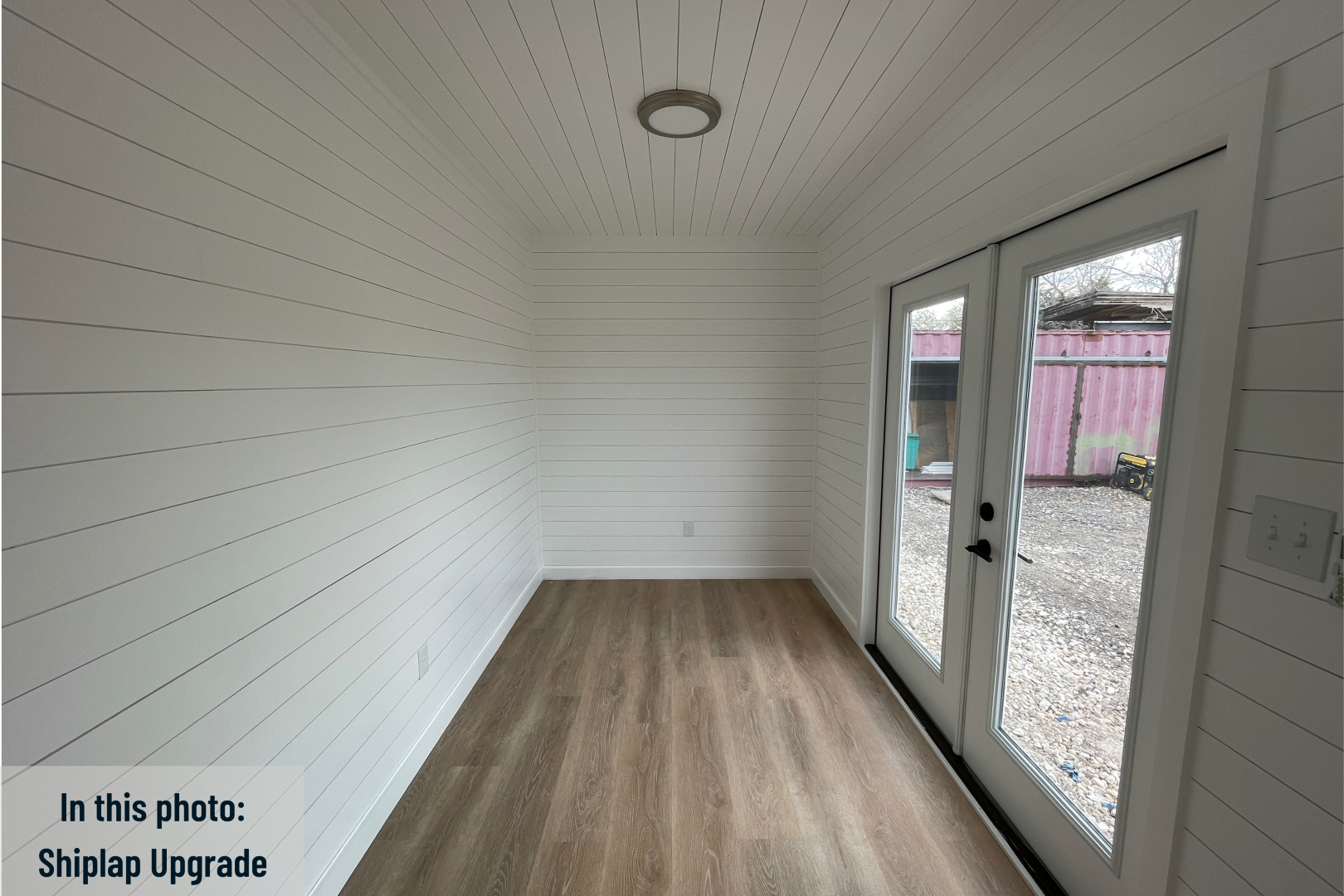

UNIT B (BEDROOMS)
ELECTRICAL
- Qty 1 – 125 amp 12 Slot Panel Breaker Box (interior mount with exterior cutoff)
- Qty 4 – 110v Duplex Outlets (Bedroom 1)
- Qty 4 – 110v Duplex Outlets (Bedroom 2)
- Qty 2 – 110v Exterior Outlet
- Qty 3 – Low Profile LED Light
- Qty 2 – Exterior Light
WINDOWS/DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth, Double Pane, Sealed with Argon Glass
- Qty 3 – 72 in x 80 in Full Glass Double French Door, White
- Qty 2 – 24 in x 80 in Pocket Doors
