“THE MARBLE FALLS” MODEL
$117,021.00
Description

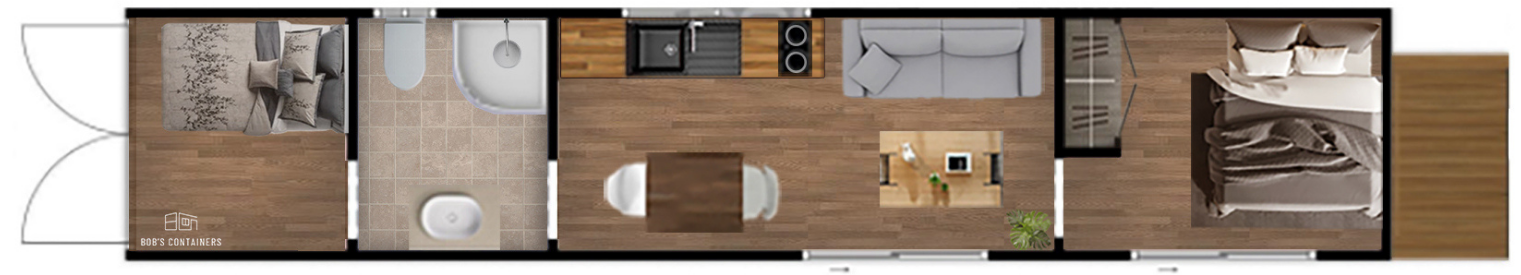

"THE MARBLE FALLS" FLOOR 1

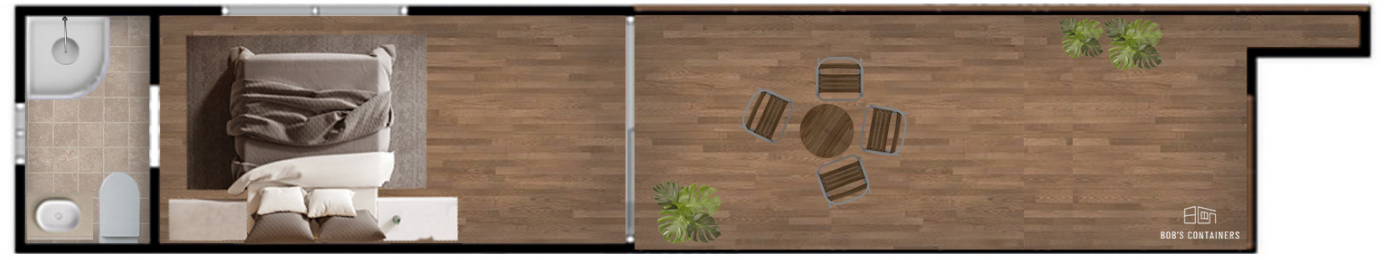

"THE MARBLE FALLS" FLOOR 2
CONTAINER HOME FEATURES & SPECS
FRAMING
Wood interior framing installed on a 40 ft x 8 ft x 9.5 ft container and a 20 ft x 8 ft x 8.5 ft container.
INSULATION
- R13 – 2-inch closed cell spray foam on walls
- R21 – 3-inch closed-cell spray foam on the ceiling
- R7 – 1-inch spray foam under container floor
FLOORING
Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
FLOOR 1
DIMENSIONS
- Bedroom One – 10 ft (L) x 7 ft (W) x 9.5 ft (H)
- Kitchen/Living Room – 15 ft 8 in (L) x 7 ft (W) x 9.5 ft (H)
- Bathroom – 6 ft (L) x 7 ft (W) x 9.5 ft (H)
- Bedroom Two – 6 ft 8 in (L) x 7 ft (W) x 9.5 ft (H)
ELECTRICAL
- Qty 1 – 250amp 12 Slot Panel Breaker Box (interior mount with exterior cutoff)
- Qty 4 – 110v Duplex Outlets per bedroom
- Qty 2 – 110v Quadplex Outlet (Kitchen Counter)
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 220v Duplex Outlet dedicated on a 20amp breaker for electric stovetop
- Qty 1 – 110v GFCI Duplex (Restroom)
- Qty 3 – 110v Exterior Outlet
- Qty 3 – Exterior Light
WINDOWS AND DOORS
- Qty 1 – 72 x 80 Hide Away French door (In the Cargo Door)
- Qty 2 – 72 x 80 Sliding Glass Door
- Qty 1 – 2′ x 2′ Window (Bathroom)
- Qty 1 – 6 x 3 Slider Window (Living / Kitchen)
3/4 BATHROOM
- Qty 1 – 36″ x 36″ Shower Stall
- Qty 1 – 18″ Vanity Sink with Faucet
- Qty 1 – American Standard Toilet
- Qty 2 – 24″ Pocket Door Entrance
- Qty 1 – Vent Fan with Light
- Qty 1 – 16” Low Profile LED Light
KITCHENETTE
- Qty 1 – 72″ Base Cabinets with Butcher Block Countertops
- Qty 1 – Single Bay Sink with Faucet
- Qty 1 – Two Burners Electric Stovetop
LIVING AREA/BEDROOM
- Qty 2 – 16” Low Profile LED Lights (Living / Kitchen)
- Qty 2 – 16” Low Profile LED Lights (Bedrooms)
MEP
- HVAC: Qty 2 – One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
- Water in: ½ in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing
- Greywater- 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
- Blackwater- 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
- Water heater – 13 kW Self-Modulating 2.54 GPM installed in the restroom. All PEX plumbing is insulated.
FLOOR 2
DIMENSIONS
- Living Area/Bedroom – 15 ft (L) x 7 ft (W) x 8.5 ft (H)
- Bathroom – 4 ft (L) x 7 ft (W) x 8.5 ft (H)
- Deck – 20 ft (L) x 7 ft (W) Stairs are located on the rear of the container that doesn’t have cargo doors. Pressure treated wood.
ELECTRICAL
- Qty 1 – 125amp 12 Slot Panel Breaker Box (interior mount with exterior cutoff)
- Qty 8 – 110v Duplex Outlets (Bedroom/Living Area)
- Qty 1 – 110v GFCI Duplex (Restroom)
- Qty 1 – 110v Exterior Outlet
- Qty 1 – Exterior Light
FLOORING
Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
WINDOWS/DOORS
- Qty 1 – 2 ft x 2 ft Windows (Bathroom)

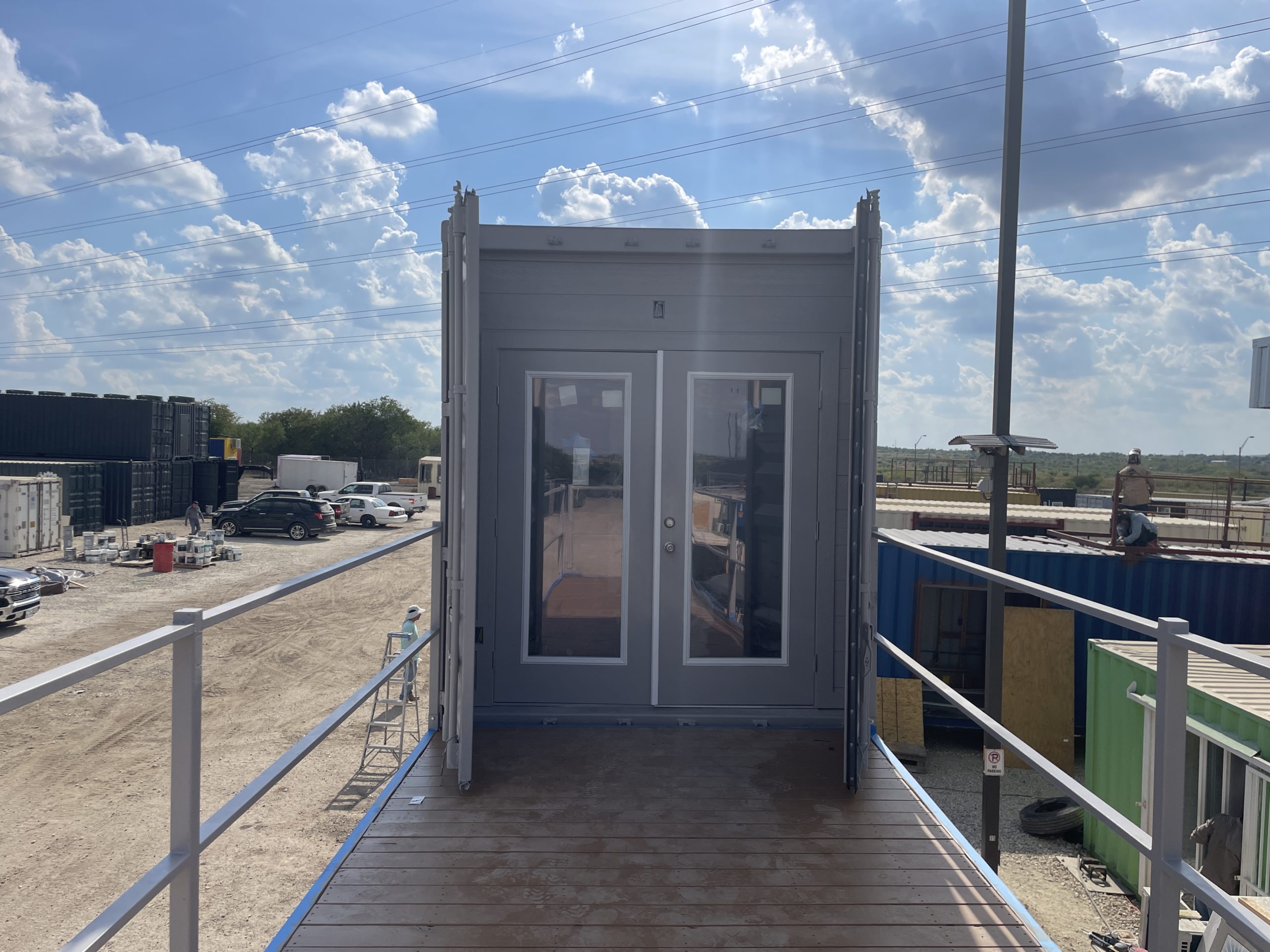

- Qty 1 – 72 in x 80 in Hide Away French door (In the Cargo Door)
- Qty 1 – 6 ft x 3 ft Slider Window (Living / Kitchen)
3/4 BATHROOM
- Qty 1 – 3 ft x 3 ft Shower
- Qty 1 – 1.5 ft Vanity Sink with Faucet
- Qty 1 – American Standard Toilet
- Qty 1 – 2 ft Pocket Door Entrance
- Qty 1 – Vent Fan with Light
- Qty 1 – 16” Low Profile LED Lights
LIVING AREA/BEDROOM
Qty 2 – 16” Low Profile LED Light
