“THE OLIVE” MODEL
$140,976.00
Description

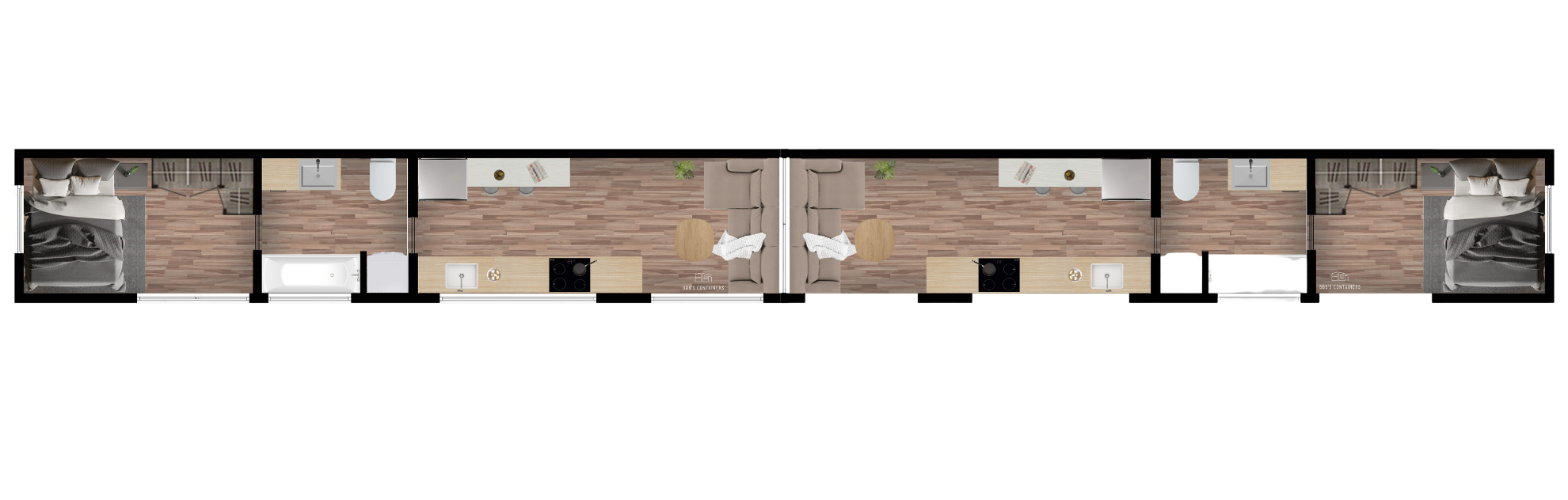

"THE OLIVE" FLOORPLAN
CONTAINER HOME FEATURES & SPECS
UNIT A & B
DIMENSIONS
- Qty 2 – 40 ft Mirror Image Container Homes
- Exterior A & B– 40 ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container
- Bedroom A & B – 11 ft (L) x 11 ft (W) x 7 ft (H)
- Kitchen / Living Room A & B – 18 ft 10 ½ in (L) x 7 ft (W) x 8 ft 10 in (H)
- Bathroom A & B – 7 ft (L) x 7 in ¼ (W) x 8 ft 10 in (H)
FRAMING & WALLS
- 2 in x 4 in wood studs on 16 in centers
- Drywall, Orange Peel Texture
- White Shiplap Bathroom Partition Wall
-
INSULATION
- Closed cell spray foam
- Ceiling – 3 in R21
- Walls – 2 in R13
- Floor – 1 in R7
- These can be modified according to your climate or needs
ELECTRICAL & LIGHTS
- Qty 1 – 200amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
- Qty 4 – 110v Duplex Outlets (Living Area)
- Qty 4 – 110v Duplex Outlets (Bedroom Area)
- Qty 2 – 110v GFCI Duplex (Kitchen Counter)
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
- Qty 1 – 110v GFCI Duplex (Restroom)
- Qty 1 – 110v GFCI Exterior Outlet
- Qty 4 – 13 in Brushed Nickel Low Profile Lights (4 Living/Kitchen Area)
- Qty 1 – 44 in LED Brushed Nickel Ceiling Fan with Interior Light (Living/Kitchen Area)
- Qty 1 – Gray Outdoor Flood Exterior Light
FLOORING
- Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
- Vapor Barrier installed underneath floor
WINDOWS & DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
- All Windows and Doors – Stained Wood Trim (Natural, Cedar or Ebony Stain)
- Qty 1 – 6 ft x 3 ft Horizontal Slider Windows (1 Kitchen)
- Qty 1 – 3 ft x 1 ft Horizontal Slider Window (Bathroom)
- Qty 1 – 4 ft x 4 ft Picture Window (Bedroom)
- Qty 2 – 72 in x 80 in Full Glass French Door with Blinds (1 Bedroom, 1 Living Room)
- Qty 2 – 24 in x 80 in Barn Doors (1 Bedroom, 1 Bathroom)
3/4 BATHROOM
- Qty 1 – Tub Shower with Tile Surround 3”x12” subway tile pieces, floor to ceiling tile from the Pan (Black, Grey, White)
- Qty 1 – 1.5 ft Vanity Sink with Faucet
- Qty 1 – Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light
- Qty 1 – Washer Dryer Hookups
LIVING AREA WITH KITCHENETTE
- Qty 1 – 12 ft Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
- Qty 1 – 18 in (L) x 18 in (W) x 18 in (H) TORVA Single Bay Sink with McKenna Single-Handle Pull-Down Sprayer Kitchen Faucet, Stainless Steel
- Qty 1 – Drop-in Four Burner Electric Radiant Stove Top
BEDROOM
- Custom Overhead Cabinets
MEP
- HVAC – AUX One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
- Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing
- Greywater – 1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
- Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
- Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated
EXTERIOR
- Oil Based Enamel Paint
- Custom color, choose your color.
- Remove Rust Spots (Used Container Only)
- Primer Applied
UPGRADES AVAILABLE
- Rooftop Decking (20 or 40 ft)
- Off-grid Water
- Cabin Cladding Finish Options: (Natural, Cedar or Dark)
- Shiplap (White, Rustic or Grey)
- Hardwood Flooring
- Premium Interior and Exterior Light Fixtures
- Premium Doors and Windows
- Kitchen Counter Tile Backsplash
- Lofts
- Custom Upgrades Available Upon Request
