“THE HOMESTEAD” MODEL
$178,447.00
Description

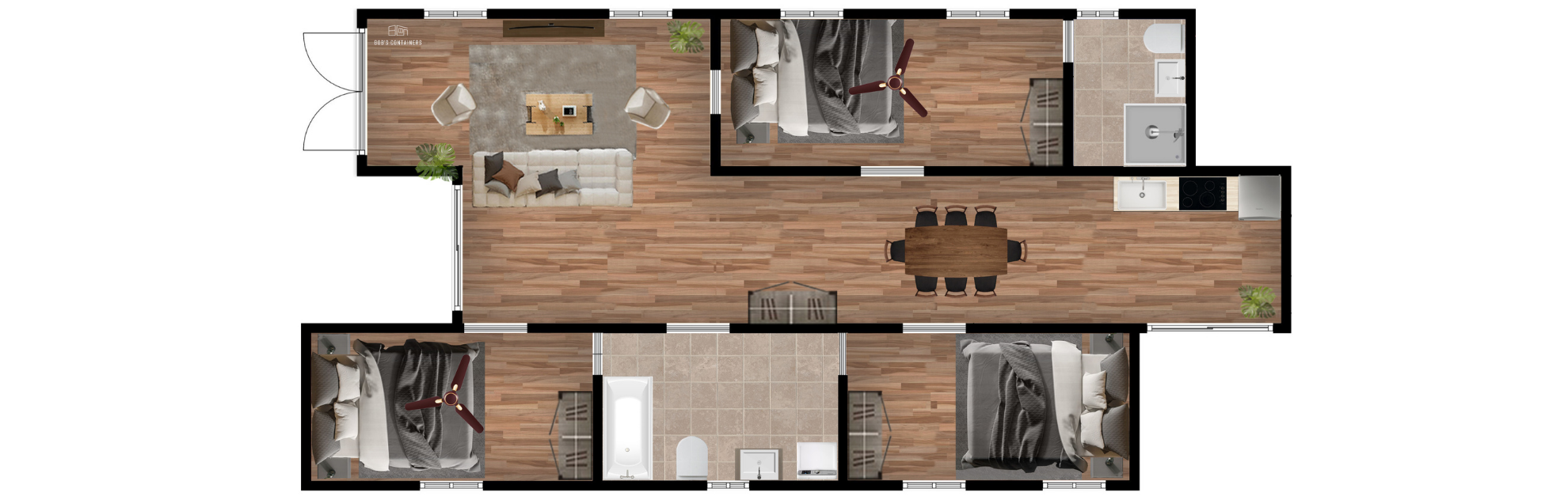

"THE HOMESTEAD" FLOORPLAN
CONTAINER HOME FEATURES & SPECS
EXTERIOR
- Direct to Metal Paint
- Custom color, choose your color at https://www.behr.com/consumer/
FRAMING & WALLS
- 2 in x 4 in wood studs on 16 in centers
- Drywall, Orange Peel Texture
- Container Wall Blowouts – 1 ft of container metal corrugation is left on the ceiling (Living, Master Bedroom)
INSULATION
- Closed cell spray foam
- Zone 4 Insulation
- These can be modified according to your climate or needs
FLOORING
- Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
- Vapor Barrier installed underneath floor
MEP
- One 200 Amp Panel Box Per Container
- HVAC – Qty 5 – AUX One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU) (1 per Bedroom and 1 Living Room)
- Water in – .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing
- Greywater – 2 in PVC “stub-out” to be connected to the city sewer or RV hookup
- Blackwater – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
- Water heater – 13 kW Self-Modulating Rheem Tankless Water heater 2.54 GPM installed under the kitchen cabinets. All PEX plumbing is insulated
CONTAINER 1
DIMENSIONS
- Exterior – 40 ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container
- Full Bath 1 – 8 ft 1 in (L) x 7 ft (W)
- Full Bath 2 – 8 ft 6 ¾ in (L) x 7 ft (W)
- Kitchen / Dining – 20 ft 5 in (L) x 7 ft (W)
ELECTRICAL & LIGHTS
- Qty 2 – 110v Duplex Outlets (Dinning)
- Qty 6 – 110v GFCI Duplex (2 Kitchen Countertop, 2 per Bathroom )
- Qty 2 – 13 in Brushed Nickel Low Profile Lights
- Qty 1 – Exterior Light
WINDOWS & DOORS
- All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
- Qty 2 – 2 ft x 3 ft Horizontal Slider Window (1 per Bathroom)
- Qty 1 – 30 in x 80 in Pocket Doors (Bathroom 1)
- Qty 1 – 24 in x 80 in Pocket Doors (Bathroom 2)
- Qty 1 – 6 ft x 3 ft Horizontal Slider Window (Kitchen)
- Qty 1 – 2 ft x 3 ft Horizontal Slider Window (Kitchen)
- Qty 1 – 36 in x 80 in Half Glass Door Smooth
LIVING AREA WITH KITCHENETTE
- Qty 1 – 10 ft L-Shape Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
- Qty 1 – 33 in x 22 in All-in-One Kitchen Sink with Pull Down Faucet
- Qty 1 – Drop-in Four Burner Electric Radiant Stove Top
- Qry 1 – 6 ft Overhead Kitchen Cabinets
- Qty 1 – 110v Duplex Outlet dedicated on a 20amp breaker for a refrigerator
- Qty 1 – 220v Duplex Outlet dedicated on a 30amp breaker for electric stovetop
FULL BATHROOM
- Qty 1 – Tub Shower with Wall Surround Shower
- Qty 1 – 24 in Maybelle Wall-mount Bathroom Vanity in White with White Ceramic Top
- Qty 1 – Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light
- Qty 1 – Stackable Washer / Dryer Hookups
MASTER BATHROOM
- Qty 1 – Tub Shower with Wall Surround Shower
- Qty 2 – Qty 1 – 24 in Maybelle Wall-mount Bathroom Vanity in White with White Ceramic Top
- Qty 1 – Standard Toilet 1.6 Gallons
- Qty 1 – Vent Fan with Light
UNIT 2
DIMENSIONS
- Exterior – 40 ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container
- Living – 14 ft 10 in (L)
- Bedroom 1 – 10 ft 1 in (L) 8 ft (W)
- Master Bedroom – 11 ft 5 in (L) 12 (W) – This Bedroom Spans Container 2 & 3
ELECTRICAL & LIGHTS
- Qty 6 – 110v Duplex Outlets (Living Room)
- Qty 2 – 13 in Brushed Nickel Low Profile Lights (Living Room)
- Qty 6 – 110v Duplex Outlets (Master Bedroom)
- Qty 4 – 110v Duplex Outlets (Bedroom 1)
- Qty 2 – 44 in LED Brushed Nickel Ceiling Fan with Interior Light (1 per Bedroom)
- Qty 1 – Exterior Light (Master Bedroom)
WINDOWS & DOORS
- Qty 1 – 4 ft x 4 ft Sliding Glass Window (Bedroom 1)
- Qty 1 – 72 in x 80 in Sliding Glass Door (Master Bedroom)
- Qty 2 – 24 in x 80 in Pocket Doors (1 per Bedroom)
UNIT 3
DIMENSIONS
- Exterior – 40 ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container
- Bedroom Two– 13 ft 2 in (L) x 7 ft (W)
- Bedroom Three – 12 ft 2 in (L) x 7 ft (W)
ELECTRICAL & LIGHTS
- Qty 8 – 110v Duplex Outlets (4 per Bedroom)
- Qty 2 – 44 in LED Brushed Nickel Ceiling Fan with Interior Light (1 per Bedroom)
WINDOWS & DOORS
- Qty 1 – 4 ft x 4 ft Sliding Glass Window (1 per Bedroom)
- Qty 2 – 24 in x 80 in Pocket Doors (1 per Bedroom)
